1/48 Eduard Hellcat MkII

Post by JonMW »

Thought I would do another Hellcat for this GB, this time using the really nice 1/48 Eduard kit. The kit comes with PE and resin wheels.

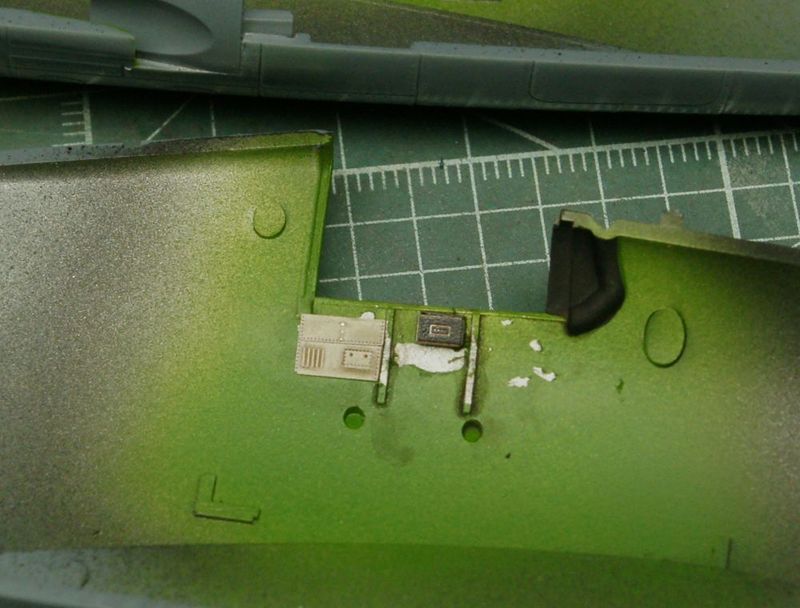

Started building the cockpit. The molded in detail that will be replaced with PE was removed using a chisel and then sanded smooth. All the parts where primered in Ultimate black.


I then painted the cockpit in aluminium, followed by a couple of coats of chipping fluid.


The cockpit was painted green and then using a damp brush some of the paint where chipped off.


Finally I started to add all the PE.


I also managed to make a small mistake by throwing a cellulose thinner soaked piece of paper on the fuselage. Of coarse the kitchen roll melted into the plastic and removing panel lines and rivet details.


So instead of sanding it down and adding all the details I decided to cut the rear part off the second fuselage to use as a plug to cast a new rear part in resin. I used an oil based clay to cover the inside of the part, placed it in a box of Lego and poured in some silicone.




When the silicone had set I flipped it over, removed the clay, added a coat of clear and poured the second half of the mold.


Then it was just a matter of casting a new rear. The new part is one section longer then it needs to be so I could cut it off and make sure the joint was straight and with out any gaps. I added a sheet of plastic to the inside of the fuselage to strengthen the joint.




Last edited by JonMW on Fri Jul 14, 2017 3:17 pm, edited 1 time in total.
User avatar
martin57
Command Sergeant Major
Command Sergeant Major
Posts: 897
Joined: Tue Apr 01, 2014 8:44 pm
Location: oundle, east northants.

Re: 1/48 Eduard Hellcat MkII

Post by martin57 »

That's great , you have done an excellent job of the repair ,.
Hope the rest of the build goes ok for you :th:
User avatar
JonMW
Command Sergeant Major
Command Sergeant Major
Posts: 987
Joined: Sat Jan 18, 2014 2:45 pm
Location: Stockholm Sweden
Sweden

Re: 1/48 Eduard Hellcat MkII

Post by JonMW »

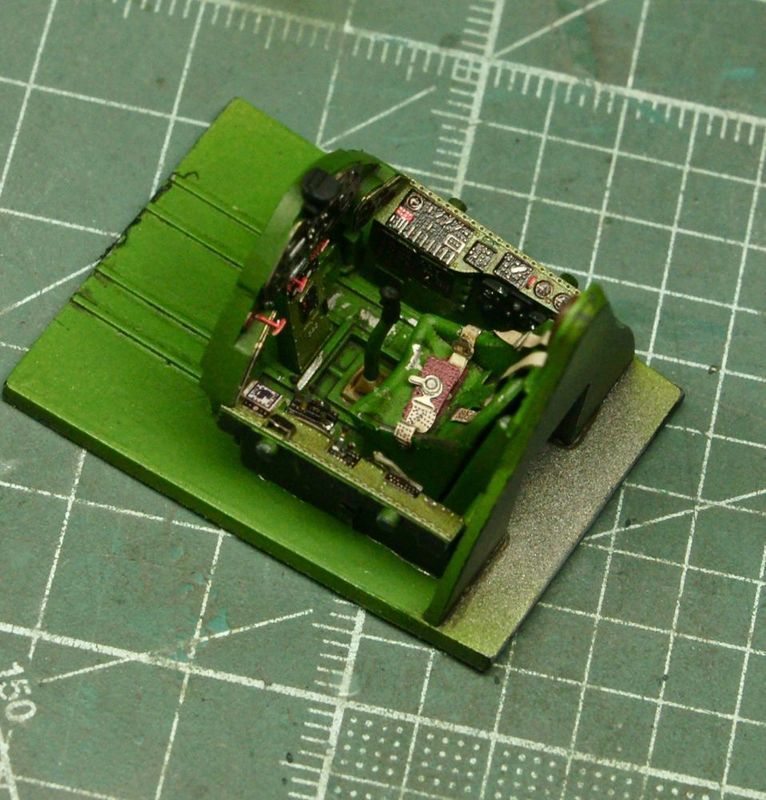

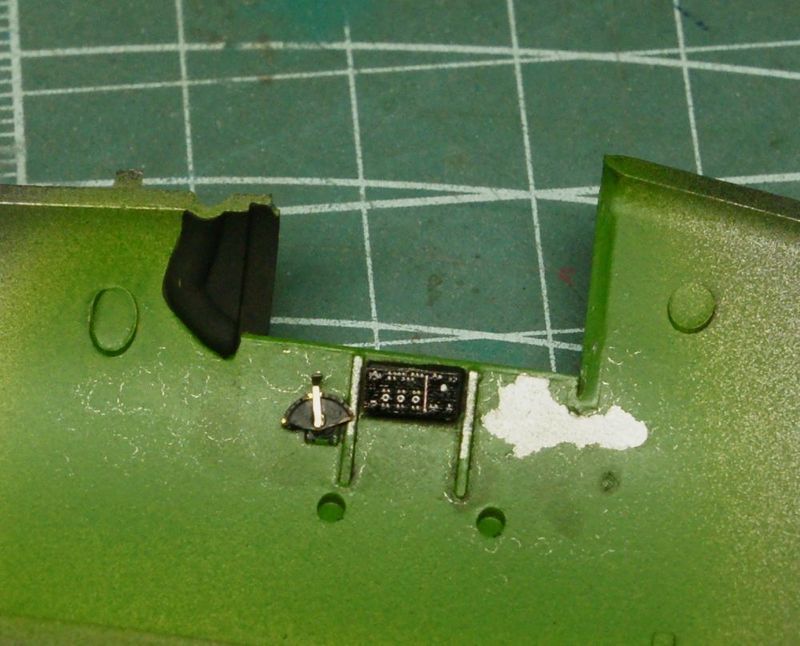

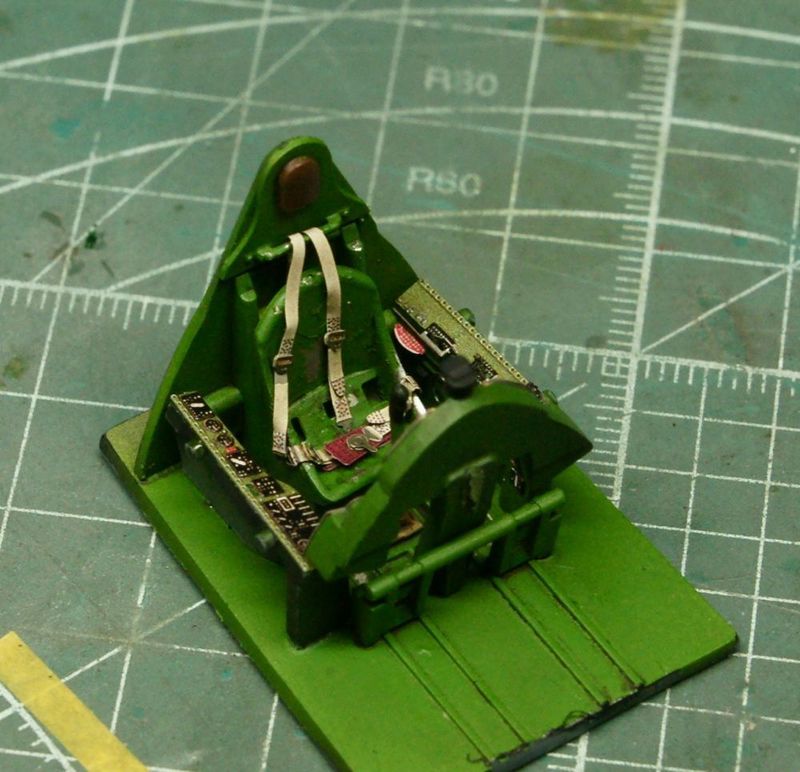

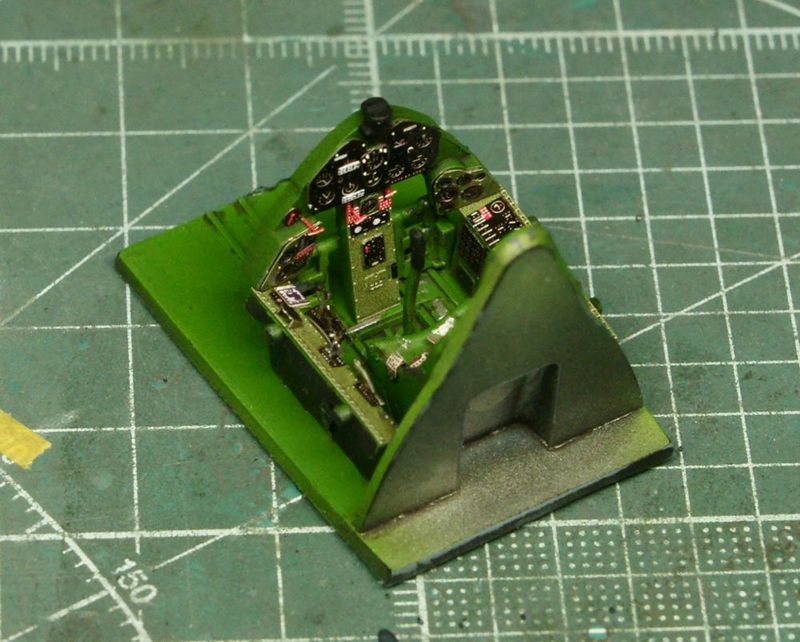

Work on this have been really slow, due to trying to get a lot of other projects done. But now it's time to get something done. Finished the cockpit by adding PE seat belts and the PE on the inside of the fuselage. Finally adding a dark brown oil wash to the whole cockpit. Got the fuselage it needed a bit of filler, probably more then it should due to my resin rear half not being perfect. There is still a little bit of sanding left and then start the rescribing.






User avatar
Lysus
Captain
Captain
Posts: 4562
Joined: Fri Dec 18, 2015 11:37 pm
Location: Seattle, US
United States of America

Re: 1/48 Eduard Hellcat MkII

Post by Lysus »

No such thing as too many Hellcats.

Dude! That repair work... :bow::

DUDE! That cockpit... :bow:: :bow::

I'll just settle in over here... :pop:
Backlog Progress: |||||||||||||||-------|----------|----------| 26/80
On the bench: Hasegawa 1/72 Tatiana's Vanship
Last Completed: Bandai HGUC Geara Zulu // Hasegawa 1/48 J2M3Raiden Prisoner of War
michald
Private First Class
Private First Class
Posts: 43
Joined: Tue Dec 02, 2014 3:41 pm
Location: Zilina, Slovakia
Slovakia

Re: 1/48 Eduard Hellcat MkII

Post by michald »

huh... great job!
greenhorn
User avatar
Stokesy44
Major General
Major General
Posts: 8641
Joined: Thu Jun 18, 2015 10:13 am
Location: The Midlands, UK
Great Britain

Re: 1/48 Eduard Hellcat MkII

Post by Stokesy44 »

Lysus wrote:No such thing as too many Hellcats.

Dude! That repair work... :bow::

DUDE! That cockpit... :bow:: :bow::

I'll just settle in over here... :pop:
My sentiments exactly. Cockpit looks awesome but the repair on the tail made my eyes pop. Great stuff. :clap: :clap:
Its been tried and tested, it works! So don't blame the system if you're no good. :doh:
User avatar
sheppsea
Command Sergeant Major
Command Sergeant Major
Posts: 882
Joined: Mon Aug 01, 2016 6:22 am
Location: Essex, United Kingdom
England

Re: 1/48 Eduard Hellcat MkII

Post by sheppsea »

:jd: That is an unbelievable repair job - very impressive stuff :clap:
User avatar
JonMW
Command Sergeant Major
Command Sergeant Major
Posts: 987
Joined: Sat Jan 18, 2014 2:45 pm
Location: Stockholm Sweden
Sweden

Re: 1/48 Eduard Hellcat MkII

Post by JonMW »

Thanks!

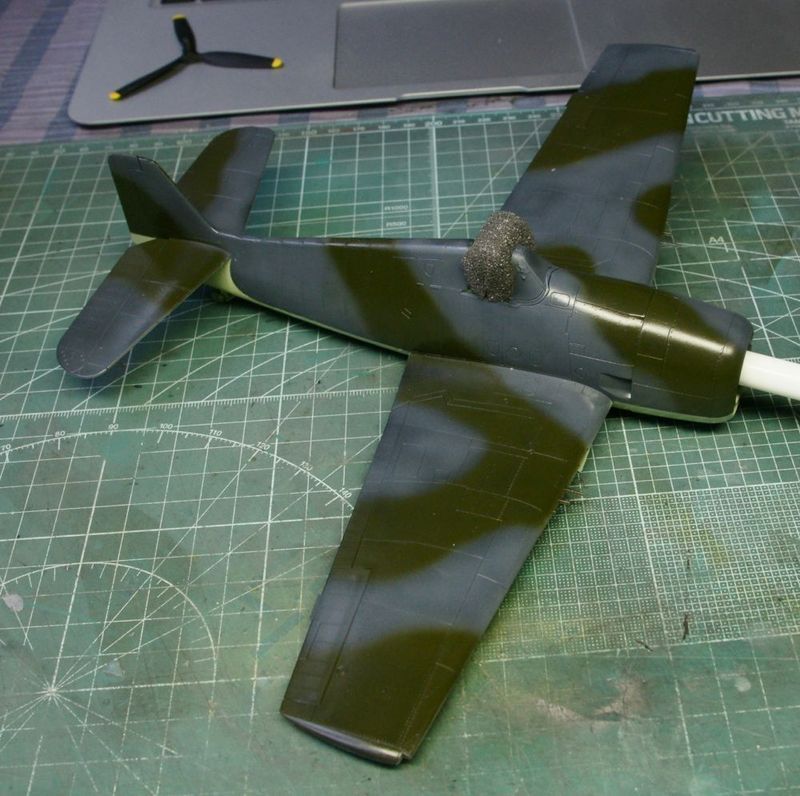

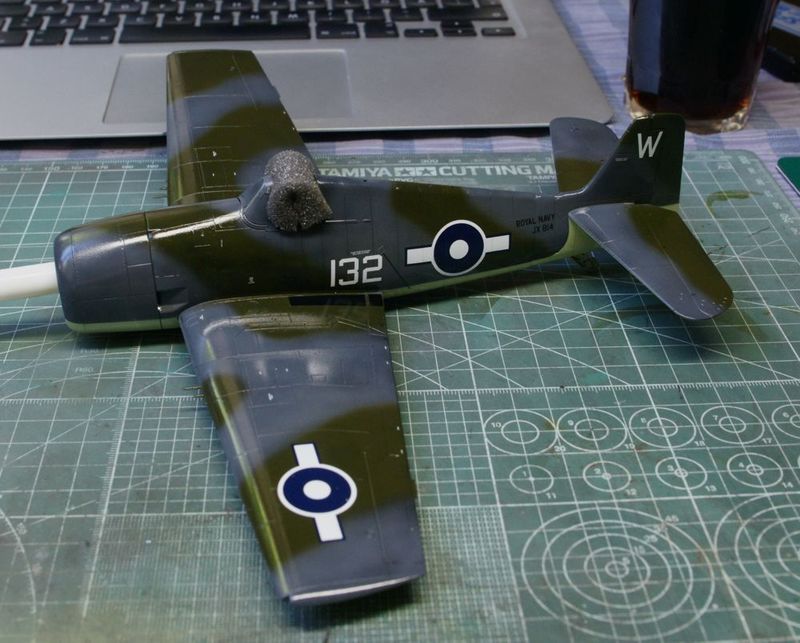

I've made some more progress on the Hellcat. Got it painted using Tamiya XF-24, XF-62 and Mr Hobby H74, then clear coated it using Aqua Gloss and applied the decals.

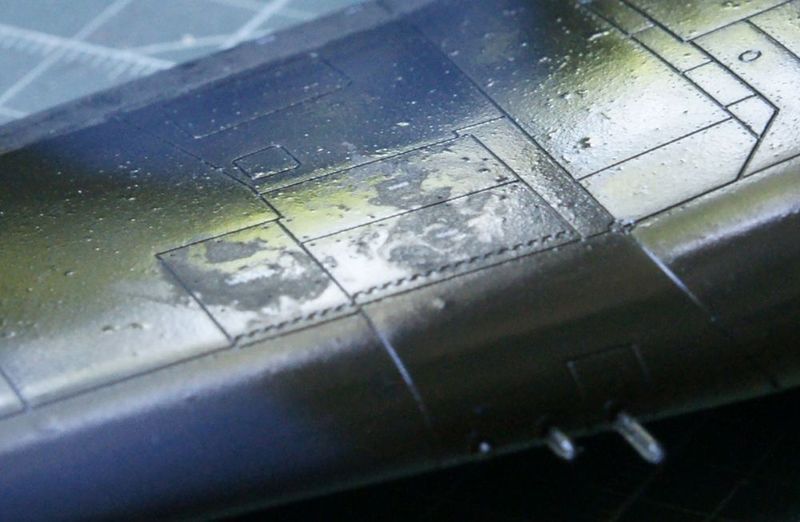

I then applied a second coat of Aqua Gloss, now I had some reaction with the gloss coat and the Micro Set or Sol. The gloss coat went flat around the decals.


So I lightly sanded the decals using the Ultimate polisher and applied a new coat of clear, this time using X-22 and leveling thinner.


Just waiting for the clear to dry and then it's time for a Dark Dirt wash.

User avatar
TommyKillander
Chief Warrant Officer 5
Chief Warrant Officer 5
Posts: 2776
Joined: Sat Dec 27, 2014 1:59 pm
Location: Gothenburg, Sweden
Sweden

Re: 1/48 Eduard Hellcat MkII

Post by TommyKillander »

Nice work... that repairjob... amazing! :bow:: :bow::

I remember that I've seen the same problem with Micro decal setting solution and Aqua Gloss too. I'm pretty sure it's the Micro Sol that causes this and I have started to clean the decals (and the area around it) with distilled water and a cotton bud after the decals have dried, before I put on the Aqua Gloss.

Great job sofar, keep it up!

We can't get too many hellcats :)
:cheers2:
Tommy
User avatar
OliveDrab
Command Sergeant Major
Command Sergeant Major
Posts: 823
Joined: Thu Dec 25, 2014 4:48 am
Location: Missouri, USA
United States of America

Re: 1/48 Eduard Hellcat MkII

Post by OliveDrab »

The Hellcat looks so cool flying the Royal Navy colors, great build and awesome save with the cast tail section :th: :th:
Curt :cheers2:
User avatar
Twokidsnosleep
General
General
Posts: 18271
Joined: Thu Aug 07, 2014 4:07 pm
Location: BC,Canada
Canada

Re: 1/48 Eduard Hellcat MkII

Post by Twokidsnosleep »

Stokesy44 wrote:
Lysus wrote:No such thing as too many Hellcats.

Dude! That repair work... :bow::

DUDE! That cockpit... :bow:: :bow::

I'll just settle in over here... :pop:
My sentiments exactly. Cockpit looks awesome but the repair on the tail made my eyes pop. Great stuff. :clap: :clap:

I am really good at the screw up/destroying parts, not so hot at the repair or in your case REMake. Holy $¥!+
If I may ask what green are you using for the internals?
Last edited by Twokidsnosleep on Sat Aug 13, 2016 2:31 pm, edited 1 time in total.
Scott

On, Under or near the desk
Brewster Buffalo ..buddy build
Rockford Firebird
1/72 Black Pearl Pirate Ship in dry dock
User avatar
JonMW
Command Sergeant Major
Command Sergeant Major
Posts: 987
Joined: Sat Jan 18, 2014 2:45 pm
Location: Stockholm Sweden
Sweden

Re: 1/48 Eduard Hellcat MkII

Post by JonMW »

Thanks guys!
Twokidsnosleep wrote: If I may ask what green are you using for the internals?
Yes you may ask, now if I actually remember is a different thing. I think it's probably Vallejo Model Air 71.094
User avatar
JonMW
Command Sergeant Major
Command Sergeant Major
Posts: 987
Joined: Sat Jan 18, 2014 2:45 pm
Location: Stockholm Sweden
Sweden

Re: 1/48 Eduard Hellcat MkII

Post by JonMW »

Final update on this, have been doing a little bit of weathering. Started with an oil dot filter, using blue, yellow and light grey.

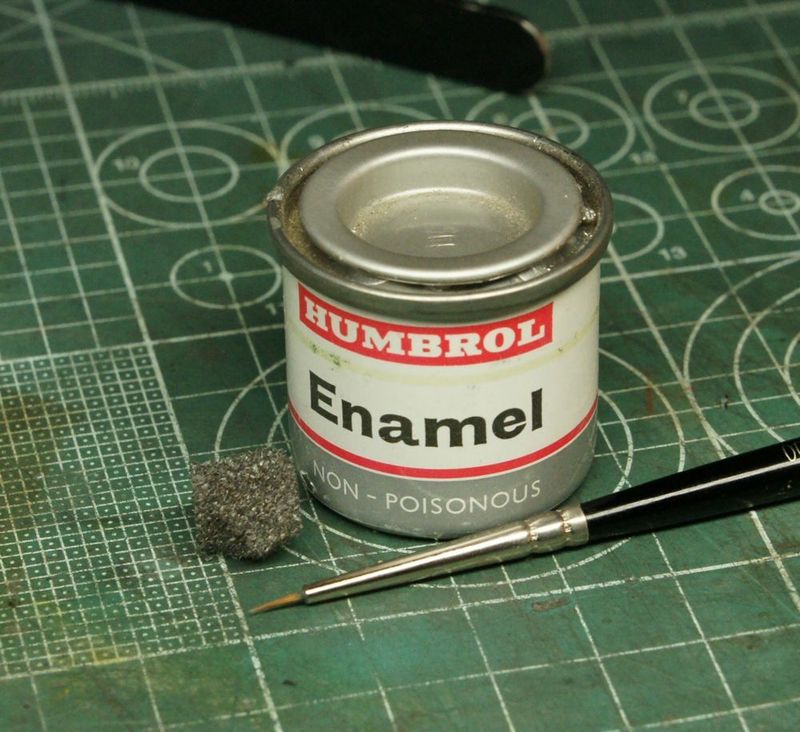

I then added some small chipping using a fine brush and sponge with Humbrol silver.

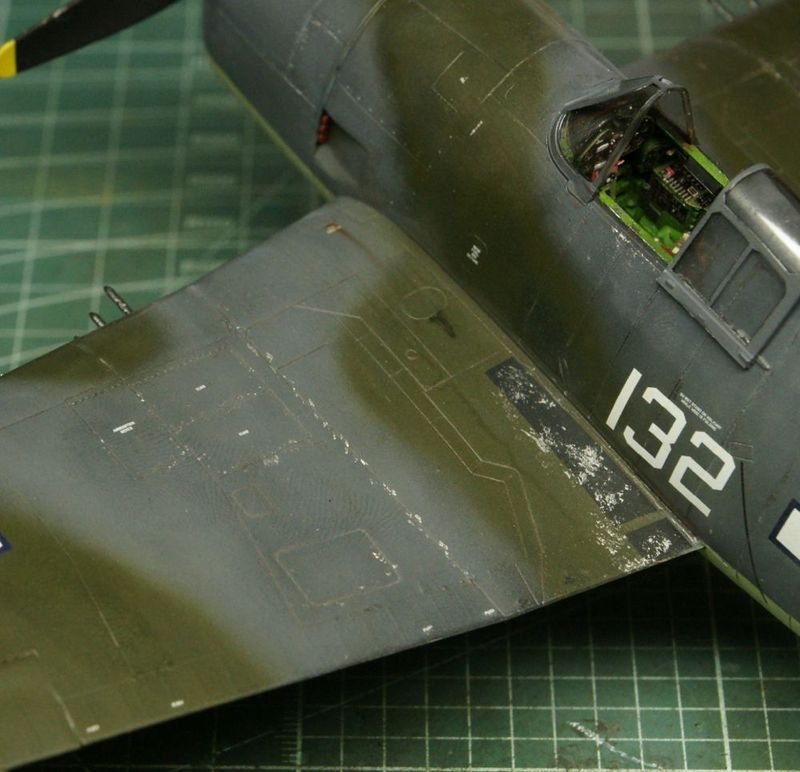

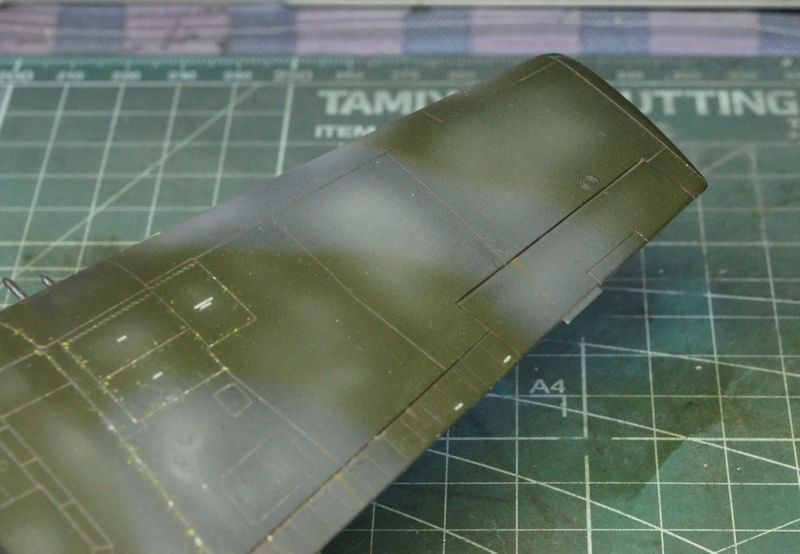

I thought the paint was a bit too uniform and the grey a bit too dark. So I mixed about 4 ml of Tamiya X-35 semi gloss clear and 5 drops of XF-55 deck tan and used it to lighten the center of some of the panels.

User avatar
TommyKillander
Chief Warrant Officer 5
Chief Warrant Officer 5
Posts: 2776
Joined: Sat Dec 27, 2014 1:59 pm
Location: Gothenburg, Sweden
Sweden

Re: 1/48 Eduard Hellcat MkII

Post by TommyKillander »

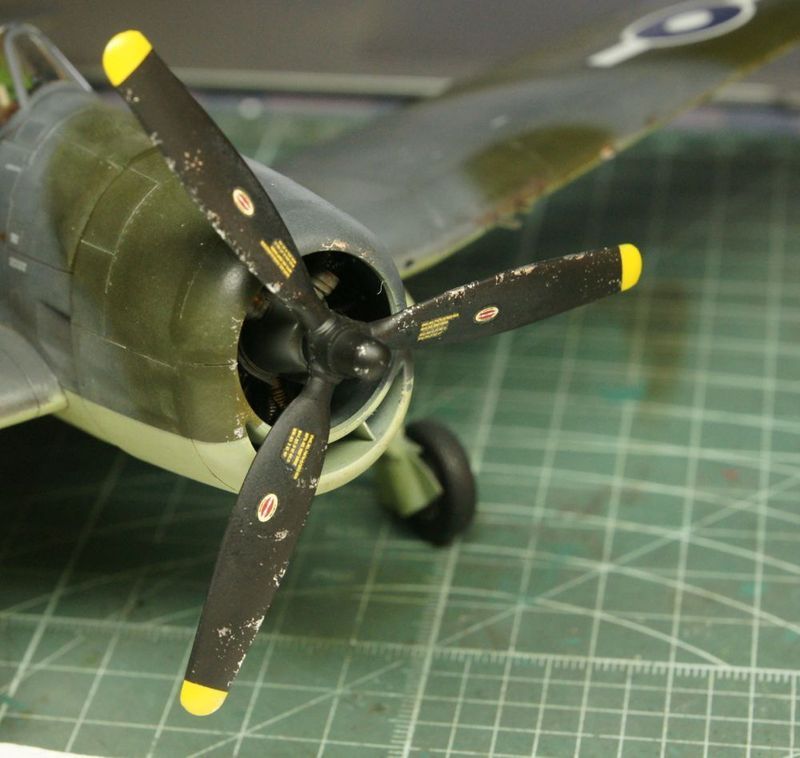

Great progress. It looks really nice. I love the chipped prop.

:cheers2:
Tommy
User avatar
Lysus
Captain
Captain
Posts: 4562
Joined: Fri Dec 18, 2015 11:37 pm
Location: Seattle, US
United States of America

Re: 1/48 Eduard Hellcat MkII

Post by Lysus »

I should really get on with my master plan to win the lottery and just build kits 24/7 so I can get this good.
Backlog Progress: |||||||||||||||-------|----------|----------| 26/80
On the bench: Hasegawa 1/72 Tatiana's Vanship
Last Completed: Bandai HGUC Geara Zulu // Hasegawa 1/48 J2M3Raiden Prisoner of War
User avatar
JonMW
Command Sergeant Major
Command Sergeant Major
Posts: 987
Joined: Sat Jan 18, 2014 2:45 pm
Location: Stockholm Sweden
Sweden

Re: 1/48 Eduard Hellcat MkII

Post by JonMW »

michald
Private First Class
Private First Class
Posts: 43
Joined: Tue Dec 02, 2014 3:41 pm
Location: Zilina, Slovakia
Slovakia

Re: 1/48 Eduard Hellcat MkII

Post by michald »

great work!
