Letter Opener... Wait what????

Post by bfrd »

Since Scott posted it, I figured I would talk about it.

While I couldn't focus on models, I still needed to keep busy with something. So I tried my hand at working steel for the first time. I don't have a forge, so my first stop was Etsy for some materials. I picked up some Damascus steel blanks. If you aren't familiar with Damascus steel, it is simply two different types of steel with varying amounts of Carbon that are forge-welded together. The different amounts of carbon in the steel react to certain chemicals differently, causing the pattern created in the forge-welding process to show up. Check the link above for more details.

I decided on making letter openers so I wouldn't have to deal with heat treating the blades. Since this process required some prototyping, not all of the images are from the same knife.

The first thing I did was to create a pattern in Fusion360.


Then I found a local shop that would cut the basic shape with a water jet, which was, surprisingly, much less expensive than I thought!

Once the basic shape was set, I used a belt grinder to profile the blade. The image below shows the raw blank from the water-jet cutting and a "mostly" profiled blade. I did a very light chemical etch to show the pattern.

Many belts lost their lives in this process, along with a few pairs of gloves (the hot steel kept burning through them). Minimal blood was lost.

Much like models, preparation of the material is key—lots and lots of sanding was required to remove the larger scratches from grinding.


The sanding completely removes the oxide layer which reveals the pattern. To etch the blades I used a 50% solution of Ferric Chloride. I just made a little tube out of PVC pipe and left the blades in for about 10 minutes in total. One type of steel is eaten away and the other layer's oxide coating is lightly sanded away.


I used my laser cutter to prepare the wood for the knife scales.

The ablation created by the laser caused the sap in the wood to get quite sticky, but oddly, it smelled really nice.


I used brass rods and 2-part epoxy to secure the scales to the blade.

After that, the only thing to do is sand down the handles and apply Danish oil.
This example used a two-part pin. The outer tube is brass and the inner rod is copper.

I made a simple box for Scott as well. I used my laser cutter and made two identical sets of letters. One was Maple, and the other was African Mahogany. I used a black CA glue to glue the letters onto the corresponding piece of wood to create a pseudo inlay.
Matthew (or Bifford if you prefer)
Stash
User avatar
digger303
General
General
Posts: 16262
Joined: Mon Mar 16, 2015 10:01 am
Location: Western Australia
Australia

Re: Letter Opener... Wait what????

Post by digger303 »

Very clever, well executed and a nice thing to do. :clap: :clap: :cheers2:
Listen and appear wise

scalemates stash https://www.scalemates.com/profiles/mat ... ION[]=Kits
User avatar
Twokidsnosleep
General
General
Posts: 18271
Joined: Thu Aug 07, 2014 4:07 pm
Location: BC,Canada
Canada

Re: Letter Opener... Wait what????

Post by Twokidsnosleep »

It is super awesome :banana:
My family was wanting to steal it!
I am gonna sharpen it up so I can stab anyone trying such thievery :mrgreen:

Ahh black Ca glue....will have to look for that
Scott

On, Under or near the desk
Brewster Buffalo ..buddy build
Rockford Firebird
1/72 Black Pearl Pirate Ship in dry dock
BigWall
Chief Warrant Officer 5
Chief Warrant Officer 5
Posts: 2961
Joined: Sun Mar 15, 2020 11:44 pm
Location: Denver, Colorado
United States of America

Re: Letter Opener... Wait what????

Post by BigWall »

Very cool projects! Looks like the all came out very nicely!
Joe

User avatar
digger303
General
General
Posts: 16262
Joined: Mon Mar 16, 2015 10:01 am
Location: Western Australia
Australia

Re: Letter Opener... Wait what????

Post by digger303 »

Twokidsnosleep wrote: Fri Jan 08, 2021 5:03 pm It is super awesome :banana:
My family was wanting to steal it!
I am gonna sharpen it up so I can stab anyone trying such thievery :mrgreen:

Ahh black Ca glue....will have to look for that
Black pouring resin is good too. :th: :cheers2:
Listen and appear wise

scalemates stash https://www.scalemates.com/profiles/mat ... ION[]=Kits
User avatar
bfrd
Site Admin
Site Admin
Posts: 1930
Joined: Tue Aug 01, 2017 11:43 am
Location: Carrollton, TX
Contact:
United States of America

Re: Letter Opener... Wait what????

Post by bfrd »

digger303 wrote: Sat Jan 09, 2021 4:02 am
Twokidsnosleep wrote: Fri Jan 08, 2021 5:03 pm It is super awesome :banana:
My family was wanting to steal it!
I am gonna sharpen it up so I can stab anyone trying such thievery :mrgreen:

Ahh black Ca glue....will have to look for that
Black pouring resin is good too. :th: :cheers2:
This box was actually my second try. I built the first one out of just birdseye maple but tried to use chamfered edges. I didn't have a small enough chamfer bit, so I used my Dremel with a sanding drum and hand file to make the chamfers. Needless to say, that didn't work out well. I now have a box for my small tools made out of very expensive wood. I did the cover differently as well. Instead of cutting out the letters completely, I used a lighter setting on the laser and only etched out about 1 mm. I then used resin to fill in. I used blue.


I, unfortunately, forgot to send this one to Scott, so it is just sitting on my bench.
Matthew (or Bifford if you prefer)
Stash
User avatar
Twokidsnosleep
General
General
Posts: 18271
Joined: Thu Aug 07, 2014 4:07 pm
Location: BC,Canada
Canada

Re: Letter Opener... Wait what????

Post by Twokidsnosleep »

I’ll come by and pick it up ;)
Scott

On, Under or near the desk
Brewster Buffalo ..buddy build
Rockford Firebird
1/72 Black Pearl Pirate Ship in dry dock
ForeverPlasticKits
Command Sergeant Major
Command Sergeant Major
Posts: 895
Joined: Wed Oct 21, 2020 8:45 pm
Location: France
France

Re: Letter Opener... Wait what????

Post by ForeverPlasticKits »

:thumb2: Very good job on the blades, specially the damask one! :thumb2:
User avatar
digger303
General
General
Posts: 16262
Joined: Mon Mar 16, 2015 10:01 am
Location: Western Australia
Australia

Re: Letter Opener... Wait what????

Post by digger303 »

Twokidsnosleep wrote: Mon Jan 11, 2021 3:22 pm I’ll come by and pick it up ;)
The people who say they'll come and never do :whistle: :shhh: :lol:
:th: :th: :cheers2:
Listen and appear wise

scalemates stash https://www.scalemates.com/profiles/mat ... ION[]=Kits
User avatar
bfrd
Site Admin
Site Admin
Posts: 1930
Joined: Tue Aug 01, 2017 11:43 am
Location: Carrollton, TX
Contact:
United States of America

Re: Letter Opener... Wait what????

Post by bfrd »

digger303 wrote: Wed Jan 13, 2021 10:56 pm
Twokidsnosleep wrote: Mon Jan 11, 2021 3:22 pm I’ll come by and pick it up ;)
The people who say they'll come and never do :whistle: :shhh: :lol:
:th: :th: :cheers2:
He's scheduled to come out on September 31st. :lol:
Matthew (or Bifford if you prefer)
Stash
User avatar
Twokidsnosleep
General
General
Posts: 18271
Joined: Thu Aug 07, 2014 4:07 pm
Location: BC,Canada
Canada

Re: Letter Opener... Wait what????

Post by Twokidsnosleep »

bfrd wrote: Thu Jan 14, 2021 1:47 pm
digger303 wrote: Wed Jan 13, 2021 10:56 pm
Twokidsnosleep wrote: Mon Jan 11, 2021 3:22 pm I’ll come by and pick it up ;)
The people who say they'll come and never do :whistle: :shhh: :lol:
:th: :th: :cheers2:
He's scheduled to come out on September 31st. :lol:

Fortunately our shared border is still closed.
We are considering a hockey stick woven wall coast to coast
Scott

On, Under or near the desk
Brewster Buffalo ..buddy build
Rockford Firebird
1/72 Black Pearl Pirate Ship in dry dock
User avatar
bfrd
Site Admin
Site Admin
Posts: 1930
Joined: Tue Aug 01, 2017 11:43 am
Location: Carrollton, TX
Contact:
United States of America

Re: Letter Opener... Wait what????

Post by bfrd »

This one is NOT a letter opener.



Matthew (or Bifford if you prefer)
Stash
User avatar
Twokidsnosleep
General
General
Posts: 18271
Joined: Thu Aug 07, 2014 4:07 pm
Location: BC,Canada
Canada

Re: Letter Opener... Wait what????

Post by Twokidsnosleep »

Cool
Knife goes in, guts come out
Scott

On, Under or near the desk
Brewster Buffalo ..buddy build
Rockford Firebird
1/72 Black Pearl Pirate Ship in dry dock
User avatar
digger303
General
General
Posts: 16262
Joined: Mon Mar 16, 2015 10:01 am
Location: Western Australia
Australia

Re: Letter Opener... Wait what????

Post by digger303 »

bfrd wrote: Thu Jan 14, 2021 11:19 pm This one is NOT a letter opener.

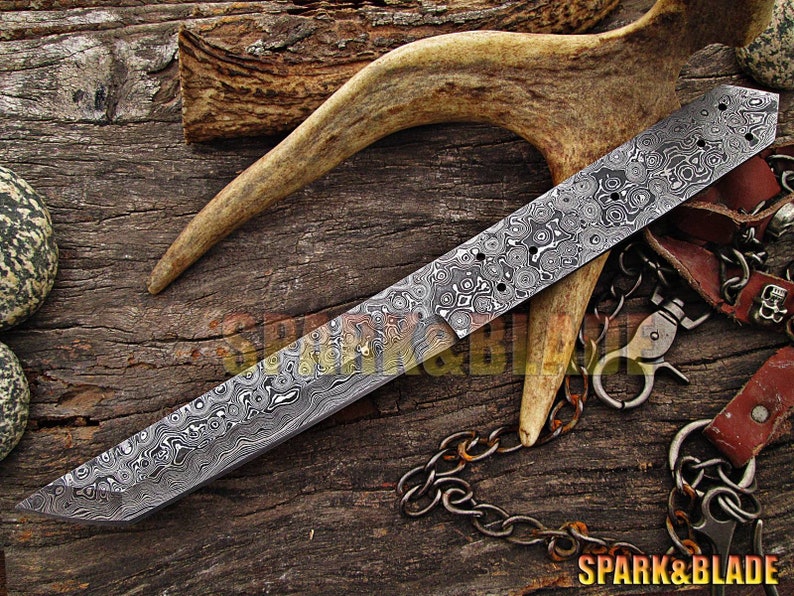

Reminds me of the Japanese Tanto.
Very nice. :th: :th: :cheers2:
Listen and appear wise

scalemates stash https://www.scalemates.com/profiles/mat ... ION[]=Kits
User avatar
bfrd
Site Admin
Site Admin
Posts: 1930
Joined: Tue Aug 01, 2017 11:43 am
Location: Carrollton, TX
Contact:
United States of America

Re: Letter Opener... Wait what????

Post by bfrd »

digger303 wrote: Fri Jan 15, 2021 5:04 am
bfrd wrote: Thu Jan 14, 2021 11:19 pm This one is NOT a letter opener.



Reminds me of the Japanese Tanto.
Very nice. :th: :th: :cheers2:
There is a good reason for that! I didn't do a traditional Japanese handle though. For this one, I just ordered the blade already cut.

Matthew (or Bifford if you prefer)
Stash
User avatar
Twokidsnosleep
General
General
Posts: 18271
Joined: Thu Aug 07, 2014 4:07 pm
Location: BC,Canada
Canada

Re: Letter Opener... Wait what????

Post by Twokidsnosleep »

bfrd wrote: Fri Jan 15, 2021 12:22 pm
digger303 wrote: Fri Jan 15, 2021 5:04 am
bfrd wrote: Thu Jan 14, 2021 11:19 pm This one is NOT a letter opener.



Reminds me of the Japanese Tanto.
Very nice. :th: :th: :cheers2:
There is a good reason for that! I didn't do a traditional Japanese handle though. For this one, I just ordered the blade already cut.

What is that Japanese knife designed to be used for??
Scott

On, Under or near the desk
Brewster Buffalo ..buddy build
Rockford Firebird
1/72 Black Pearl Pirate Ship in dry dock
User avatar
digger303
General
General
Posts: 16262
Joined: Mon Mar 16, 2015 10:01 am
Location: Western Australia
Australia

Re: Letter Opener... Wait what????

Post by digger303 »

Twokidsnosleep wrote: Sat Jan 16, 2021 6:33 pm
bfrd wrote: Fri Jan 15, 2021 12:22 pm
digger303 wrote: Fri Jan 15, 2021 5:04 am

Reminds me of the Japanese Tanto.
Very nice. :th: :th: :cheers2:
There is a good reason for that! I didn't do a traditional Japanese handle though. For this one, I just ordered the blade already cut.

What is that Japanese knife designed to be used for??
I was going to be a smart A and say for slicing tomatoes, but decided I would be more helpful and generally nice :whistle: :nena:
Mostly Tanto were used as a stabbing weapon, but as it varied in size a little it could be also used as a short sword in a slashing fashion. Heavier versions were designed as armor piecing.
:th: :cheers2:

Ps...Smaller versions were used as a woman's self defense knife.
Listen and appear wise

scalemates stash https://www.scalemates.com/profiles/mat ... ION[]=Kits
User avatar
bfrd
Site Admin
Site Admin
Posts: 1930
Joined: Tue Aug 01, 2017 11:43 am
Location: Carrollton, TX
Contact:
United States of America

Re: Letter Opener... Wait what????

Post by bfrd »


Two more finished and I have the last blade to go. Left side is Purpleheart and the right side is Bloodwood. I have no idea what I am going to do with them. Perhaps, a prize for one of the group builds?
Matthew (or Bifford if you prefer)
Stash
User avatar
Twokidsnosleep
General
General
Posts: 18271
Joined: Thu Aug 07, 2014 4:07 pm
Location: BC,Canada
Canada

Re: Letter Opener... Wait what????

Post by Twokidsnosleep »

OR, if you don't finish your build...



That is John Belushi on SNL, so nobody have a fit, just a joke
